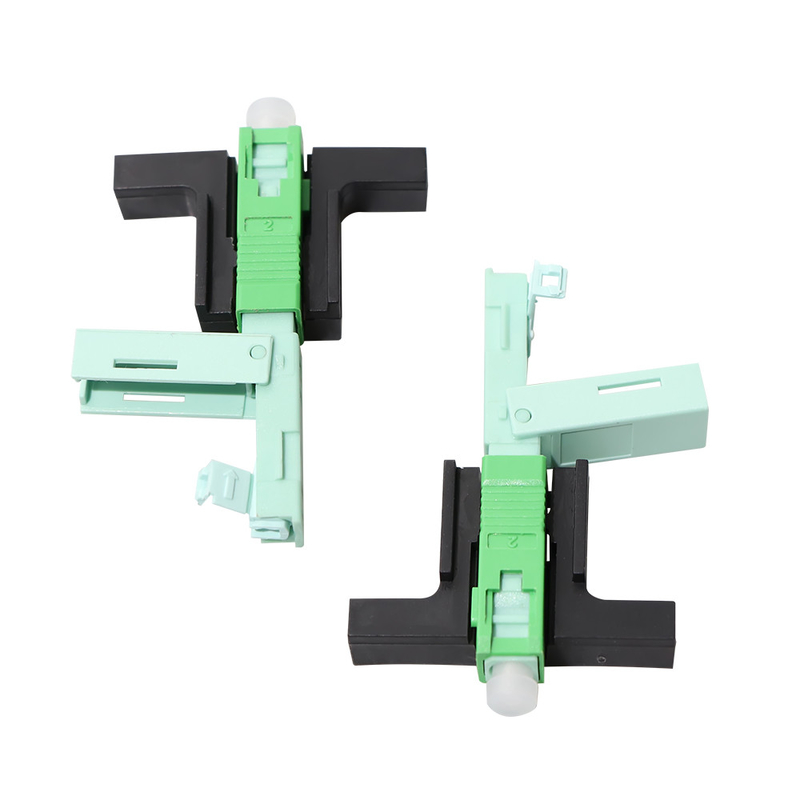

SC/APC Field-mount Optical Connector Mechanical Field Assembly Connector SC

Product Details

Place of Origin: Guangdong, China

Brand Name: DYS/OEM

Model Number: SC/APC Fast Connector, SC

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 100 pieces

Price: $0.32 - $0.68/pieces

Packaging Details: Individual box or according to customer's request

Supply Ability: 50000 Piece/Pieces per Day

Get Best Price

Product Details

Product Description

Highlight:

Type:	Fiber Adapter & Connectors	Use:	FTTH, FTTH
Polishing Type:	UPC,APC	Diameter:	0.9mm, 2.0mm, 3.0mm,others
Color:	Green,Blue	Fiber Type:	SM/MM
Insert Loss:	Less 0.3db	Return Loss:	More Than 60db
Fiber Cable Type:	3mm Drop Cable, 3x2mm Flat Cable	No. Of Fiber:	1.
Port:	Shenzhen

Type:	Fiber Adapter & Connectors
Use:	FTTH, FTTH
Polishing Type:	UPC,APC
Diameter:	0.9mm, 2.0mm, 3.0mm,others
Color:	Green,Blue
Fiber Type:	SM/MM
Insert Loss:	Less 0.3db
Return Loss:	More Than 60db
Fiber Cable Type:	3mm Drop Cable, 3x2mm Flat Cable
No. Of Fiber:	1.
Port:	Shenzhen

SC/APC Field-mount Optical Connector Mechanical Field Assembly Connector SC

Product Description

SC/APC Field-mount Optical Connector Mechanical Field Assembly Connector SC

Quick Assembly Connector (also named “ No-Polish Connector ” , “Pre-polish Connector” or “ Fast Connector ”) is an easy-to-install device. No tool or jig is required. It is universal for 250um /900um / 2.0mm / 3.0mm / Flat Cable.
it was designed for fast termination with pre-polished connector. Using V groove technology, it requires no epoxy. With
transparent body, the connecting result can be seen by Fiber Checker immediately. This is an ideal solution, either for outside plant or inside a building.

Optic Fiber Fast Connector

1.Simple structure
2.Save time
3.Low insertion loss.

Feature

1. Based on the pluggable non-preset tube technology
2. Precision ceramic components with co-axial self centering, Excellent and durable optical property
3. Optical fiber fits axially in elastic way and avoids completely any false connect
4. Triple clamping through the naked fiber, tight buffer and cable, etc., can be used as patchcord
5. High on-line tensile strength of Optical Fast Connector after terminating, always keep connecting under the force from cabling and drawing.
6. Integrated protection of the casing to withstand harsh user environment.
7. Directly connectable with ONU without any optical socket, which reduces FTTH cost.
8. High success rate and easiness in installation with average splicing time 100 sec
9. Lower requirement for the habit working and work environment call for to the builder.
10. Visible Installation quality; independent from any far end light source and special device satisfying cabling construction in any sectioned way.

ITEM	Technical Parameters
Applicable for	3.1 x 2.0 mm Drop cable
Optical fiber diameter	125μm ( 657A & 657B )
Tight buffer diameter	250μm
Fiber mode	Single mode
Operation time	About 100s(no fiber cut)
Insert loss	≤ 0.3dB(1310nm & 1550nm)
Return loss	≥40dB
Fastening strength of naked fiber	>5 N
Fastening strength of naked fiber holder	>10 N
Tensile strength	>50 N
Using temperature	-40~+80°C
On-line tensile strength (20 N)	IL ≤ 0.2dB RL ≤ 5dB
Mechanical durability (500 times)	IL ≤ 0.2dB RL ≤ 5dB
Drop-off test (drop-off height 4m, once per direction, totally 3 times)	IL ≤ 0.2dB RL ≤ 5dB
