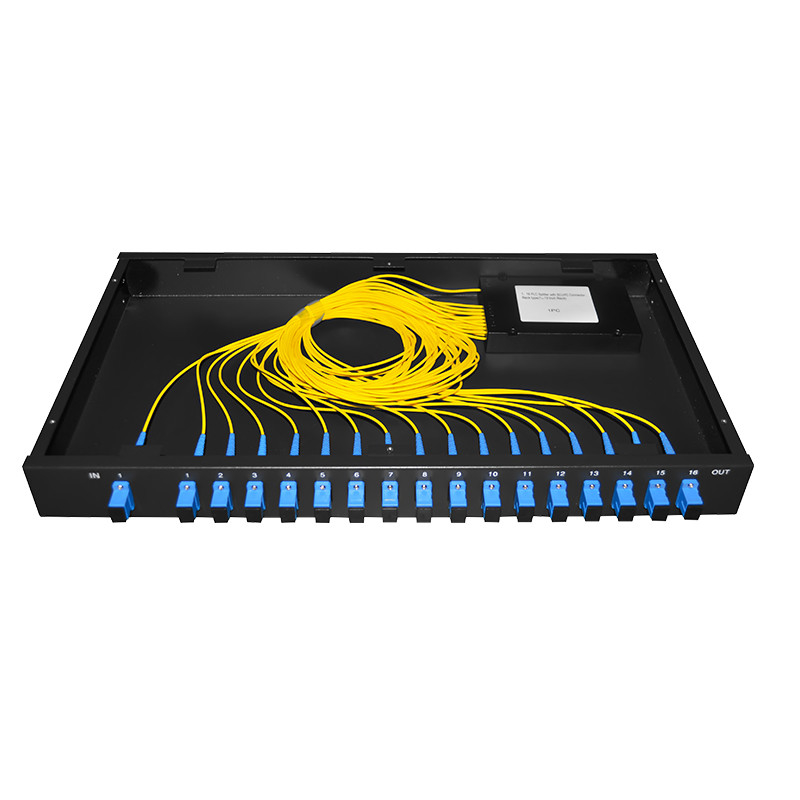

1U 19" Fiber Optic PLC Splitter 1x16 Rack Mount Patch Panel

Product Details

Place of Origin: Guangdong, China

Brand Name: DYS/OEM

Model Number: PLC Splitter Patch Panel

Document: Product Brochure PDF

Payment & Shipping Terms

Price: $13.00 - $80.00/pints

Packaging Details: Individual box or according to customer's request

Supply Ability: 2000 Piece/Pieces per Day

Get Best Price

Product Details

Product Description

Highlight:

Type:	Fiber Optic Patch Panel	Use:	FTTH
Product Name:	1U 19" Fiber Optic PLC Splitter Rack Mount Patch Panel	Connector:	SC/APC
Material:	Cold-rolled Steel	Color:	White,Black Or Customized
Application:	Telecom	Function:	Cable Distribution
Packing:	Inner Box And Carton Box	Suitable:	ST, FC, SC, LC Adapters
Port Numbers:	8 / 12 / 16 / 24 / 48 Cores	No. Of Fiber:	16f, 16 Cores
Port:	Shenzhen

Type:	Fiber Optic Patch Panel
Use:	FTTH
Product Name:	1U 19" Fiber Optic PLC Splitter Rack Mount Patch Panel
Connector:	SC/APC
Material:	Cold-rolled Steel
Color:	White,Black Or Customized
Application:	Telecom
Function:	Cable Distribution
Packing:	Inner Box And Carton Box
Suitable:	ST, FC, SC, LC Adapters
Port Numbers:	8 / 12 / 16 / 24 / 48 Cores
No. Of Fiber:	16f, 16 Cores
Port:	Shenzhen

1U 19" Fiber Optic PLC Splitter 1x16 Rack Mount Patch Panel

Product Description

19" Fiber Optical 1x16 SC/UPC GPON LGX PLC Splitter patch panel Termination distribution Box ODF Rack Mount

Description

PLC splitter is the planer wavelength integrated optic device which based on the quartz substrate, with small size, wide-field operation wavelength and high reliability and high splitter ratio features. Our company can manufacture the 1*N and 2*N all series products, and can be customized according to customer requirements in different situation.

ABS PLC splitter with SC APC connector

type PLC splitter without connector

PLC splitter with SC APC connector

LGX PLC splitter with SC APC connector

Setting Information
Type	1x16 , 1U 19" Rack Mount Splitter
Fiber	SC/APC, G657A1
Length	1M, 2M, 3M or as your request
Cable Sheath	PVC
Cable Diameter	0.9/2.0/ 3.0 mm
Warranty	10-30 years

Parameter/Type	Nx2(N=1or2)	Nx4(N=1or2)	Nx8(N=1or2)	Nx16(N=1or2)	Nx32(N=1or2)	Nx64(N=1or2)
Fiber	9/125 um SMF-28e or customer appoint
Operating Wavelength(nm)	1260~1650(nm)
Insertion Loss	≤3.9dB	≤7.1dB	≤10.3dB	≤13.3dB	≤16.3dB	≤19.8dB
Loss Uniformity(dB)	≤0.6dB	≤0.6dB	≤0.8dB	≤1.2dB	≤1.5dB	≤2.0dB
Polariation Dependent Loss	≤0.15dB	≤0.15dB	≤0.2dB	≤0.2dB	≤0.2dB	≤0.3dB
Return Loss	UPC≥50dB APC≥60dB
Directivity	≥55dB
Working Temperature(℃)	-40°C to +85°C
