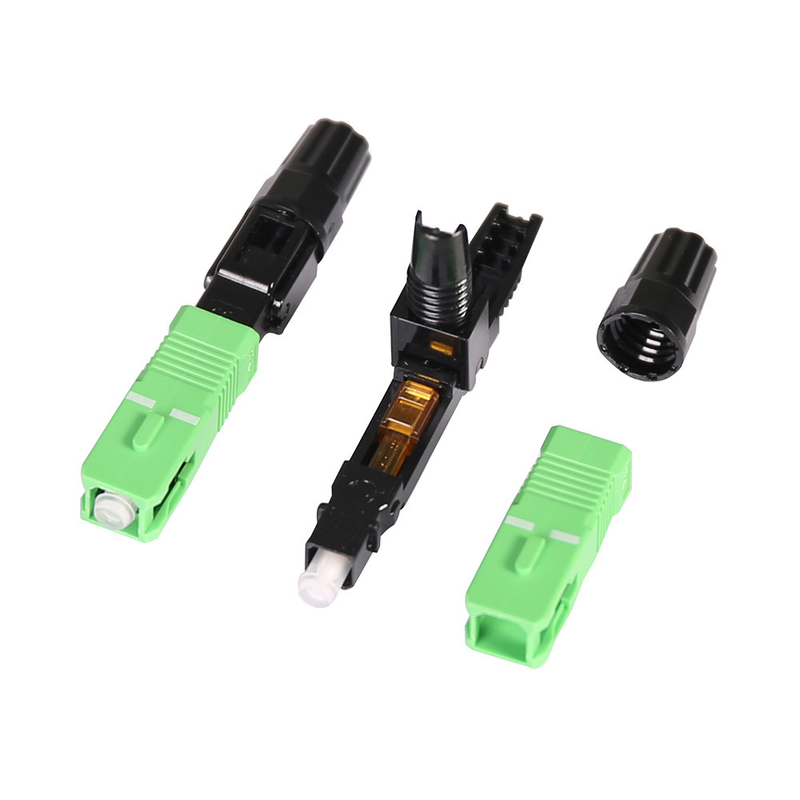

High Quality SC APC UPC Fiber field assembly optical fast connector

Product Details

Place of Origin: Guangdong, China

Brand Name: DYS

Model Number: sc fast connector

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1000 pieces

Price: $0.25 - $0.38/pieces

Packaging Details: 100 pcs in 1 box
20 box in 1 carton

Supply Ability: 20000 Piece/Pieces per Day

Get Best Price

Product Details

Product Description

Highlight:

Type:	Fiber Adapter & Connectors	Use:	FTTH, FTTH
Warranty Time:	5	Network:	Fiber
Product Name:	Fiber Connectors	Connector Type:	SC UPC Or SC APC
Return Loss:	≤ -50dB	Insertion Loss:	≤ 0.2dB
Length:	60mm	Color:	Blue, Green
Application:	CATV, FTTH,Networking	Package:	According To Customer
Operating Temperature:	-40 To + 85℃	Port:	Shenzhen

Type:	Fiber Adapter & Connectors
Use:	FTTH, FTTH
Warranty Time:	5
Network:	Fiber
Product Name:	Fiber Connectors
Connector Type:	SC UPC Or SC APC
Return Loss:	≤ -50dB
Insertion Loss:	≤ 0.2dB
Length:	60mm
Color:	Blue, Green
Application:	CATV, FTTH,Networking
Package:	According To Customer
Operating Temperature:	-40 To + 85℃
Port:	Shenzhen

High Quality SC APC UPC Fiber field assembly optical fast connector

Product Description

High Quality SC APC UPC Fiber field assembly optical fast connector

Installed in order to ensure the quality and efficiency of research and development of the high ratio of the fiber optic fast in products. Pressure welding parts adopt new unique structure design, installation no injecting, no grinding, no material . With embedded optical fiber type structure .

Installed with high quality and high success rate and fast and other characteristics .It Can be reused and easy to carry

APPLICATIONS

Used to open the FTTH fiber terminal end.
In the box, cabinet, such as wiring into the box.
Off the back of the accidents such as fiber, maintenance.
LAN, wan, data and video transmission.
The construction of the fiber end user access and maintenance.
Optical fiber access of mobile base station.

FEATURES

Single fiber, SC/LC/ST/FC-based connector
In-line connection available
Operating temperature: -40° to 85°C
Cable Diameter Range: 2.0mm, 3.0mm, 2.0*3.0mm

PRODUCT PARAMETERS

Type

SM-UPC

SM-APC

MM-UPC

Typical

MAX

Typical

MAX

Typical

MAX

Insertion loss

≥45dB

≤0.35dB

≤0.15

≤0.35dB

≤0.05

≤0.30dB

Return loss

≥45dB

≥55dB

≥30dB

Durability

500 mating cycles

Working temperature

-40 to + 85℃

Company Profile

Shenzhen DYS Fiber Optic Technology is a leading company in developing and manufacturing advanced fiber optic products，mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. DYS win the honorary title of National High-tech enterprise by Shenzhen government in 2014. With years of experiences in the fiber optic industry, our factory is fully equipped over 5000 square meters and more than 30 non dust production lines .About 250 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 15 production lines for standard jumper and 8 PLC Splitter production lines. The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on. All of our optical products are RoHS compliant and DYS also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, DYS fiber optic is looking forward to cooperate with you.

End User

FAQ

Q1. Do you provide OEM ODM service ? Yes, we can print your logo or label on the products or on the box. Q2. How can you guarentee the quality ? Build on our perfect quality management system, all of our products were 100% tested before the shipment. Q3. What is your delivery time ? Generally, sample: 3~5 working days. formal order: 7-10 working days. Q4. What's the method of shipment? We accept all shipment , such as Delievery,ocean transport, land transport , airport transport. Q5. What's the Payment? We accept all payments , such as LC,TT,DP,DA,Paypal,Western Union,Money Gram. Q6. Do you provide sample service? A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.
