Home > Products > Sweater Knit Fabric By The Yard > High quality fiber optic simplex 900um G657A1 SC/APC pigtail

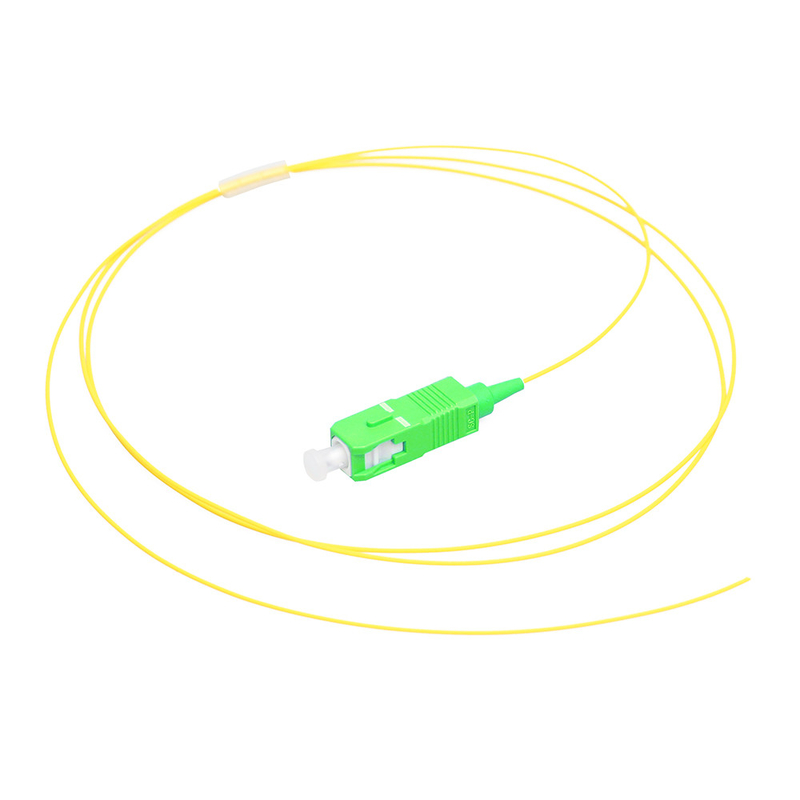

High quality fiber optic simplex 900um G657A1 SC/APC pigtail

Product Details

Place of Origin: Guangdong, China

Brand Name: DYS/OEM

Model Number: SC/APC SM

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 100 pieces

Price: $0.10 - $0.45/pieces

Packaging Details: 1pc/PE bag
according to customer's request.

Supply Ability: 100000 Piece/Pieces per Day

Get Best Price
Highlight:
Type:
Fiber Pigtails
Use:
FTTH
Model Name:
SC/UPC Pigtail
Model:
SM(Single Mode)
Connector Type:
SC
Ferrule Endface:
UPC
Cable Outer Diameter:
0.9mm
Color:
Yellow
No. Of Fiber:
1
Fiber Type:
G652D / G657A2
Pigtail Color:
Yellow Or Customized
Jacket:
PVC/LSZH
Port:
Shenzhen
Type:
Fiber Pigtails
Use:
FTTH
Model Name:
SC/UPC Pigtail
Model:
SM(Single Mode)
Connector Type:
SC
Ferrule Endface:
UPC
Cable Outer Diameter:
0.9mm
Color:
Yellow
No. Of Fiber:
1
Fiber Type:
G652D / G657A2
Pigtail Color:
Yellow Or Customized
Jacket:
PVC/LSZH
Port:
Shenzhen
High quality fiber optic simplex 900um G657A1 SC/APC pigtail
Product Description
High quality fiber optic simplex 900um G657A1 SC/APC pigtail
Fiber Optic Pigtail is important of optical network.they have same or different connectors which are installed on the end of fiber optic cable. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.

Features

1. SC, LC, FC, MU, ST, MT-RJ, E2000 connector available; 2. Superior qualified standard PC, APC, UPC, SPC polishing; 3. φ0.9mm, φ2.0mm, φ3.0mm cable optional; 4. Single mode (9125) or multi mode (50/125 or 62.5/125) fiber available; 5. Available in fiber bunch, ribbon fan-out, pigtail available; 6. Simplex and duplex connector available; 7. Low IL and High RL; 8. Good exchange ability and good durability; 9. Customized specifications are welcomed.
High quality fiber optic simplex 900um G657A1 SC/APC pigtail
High quality fiber optic simplex 900um G657A1 SC/APC pigtail
High quality fiber optic simplex 900um G657A1 SC/APC pigtail
Item
SM(Single Mode)
MM(Multimode)
Fiber Cable Type
G652D/G655/G657A1/G657A2
OM1
OM2/OM3/OM4
Fiber Diameter (um)
9/125
62.5/125
50/125
Cable OD (mm)
0.9/1.6/1.8/2.0/2.4/3.0
Endface Type
PC
UPC
APC
UPC
UPC
Typical Insertion Loss (dB)
<0.2
<0.15
<0.2
<0.1
<0.1
Return Loss (dB)
>45
>50
>60
/
Insert-pull Test (dB)
<0.2
<0.3
<0.15
Interchangeability (dB)
<0.1
<0.15
<0.1
Anti-tensile Force (N)
>70
Temperature Range (℃)
-40~+80
