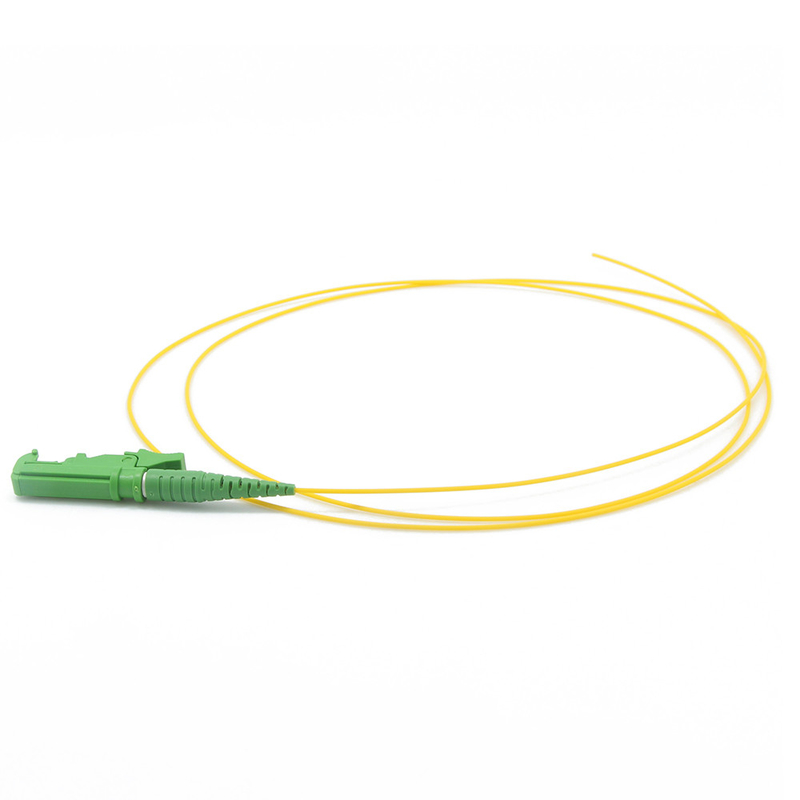

Loaded Shutter E2000 Connector Fiber Optic Pigtail E2000 APC Pigtail

Product Details

Place of Origin: Guangdong, China

Brand Name: DYS/OEM

Model Number: E2000

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 100 pieces

Price: $0.10 - $0.65/pieces

Packaging Details: Packaging Details
1pc/PE bag
according to customer's request.

Supply Ability: 20000 Piece/Pieces per Day

Get Best Price

Product Details

Product Description

Highlight:

Type:	Fiber Pigtails	Use:	FTTH
Warranty Time:	1	Network:	4g, 3G
Model Name:	E2000/APC Pigtail	Model:	SM(Single Mode)
Connector Type:	E2000	Ferrule Endface:	APC
Fiber Type:	G652D/G657A2	Cable Outer Diameter:	0.9mm
Application:	Indoor/outdoor	Jacket:	PVC/LSZH
Pigtail Color:	Yellow Or Customized	Cable Length:	1/1.5/3/5/10/20m Or Customized
Port:	Shenzhen

Type:	Fiber Pigtails
Use:	FTTH
Warranty Time:	1
Network:	4g, 3G
Model Name:	E2000/APC Pigtail
Model:	SM(Single Mode)
Connector Type:	E2000
Ferrule Endface:	APC
Fiber Type:	G652D/G657A2
Cable Outer Diameter:	0.9mm
Application:	Indoor/outdoor
Jacket:	PVC/LSZH
Pigtail Color:	Yellow Or Customized
Cable Length:	1/1.5/3/5/10/20m Or Customized
Port:	Shenzhen

Loaded Shutter E2000 Connector Fiber Optic Pigtail E2000 APC Pigtail

Product Description

Factory Price 0.9mm Simplex Fiber Optic Pigtail 1.5M SM E2000 Pigtail Multimode Fiber E2000/UPC Pigtail

Fiber Optic Pigtail is important of optical network.they have same or different connectors which are installed on the end of fiber optic cable. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.

Features

1. SC, LC, FC, MU, ST, MT-RJ, E2000 connector available; 2. Superior qualified standard PC, APC, UPC, SPC polishing; 3. φ0.9mm, φ2.0mm, φ3.0mm cable optional; 4. Single mode (9125) or multi mode (50/125 or 62.5/125) fiber available; 5. Available in fiber bunch, ribbon fan-out, pigtail available; 6. Simplex and duplex connector available; 7. Low IL and High RL; 8. Good exchange ability and good durability; 9. Customized specifications are welcomed.

Item	SM(Single Mode)					MM(Multimode)
Fiber Cable Type	G652D/G655/G657A1/G657A2					OM1	OM2/OM3/OM4
Fiber Diameter (um)	9/125					62.5/125	50/125
Cable OD (mm)	0.9/1.6/1.8/2.0/2.4/3.0
Endface Type	PC	UPC	APC	UPC	UPC
Typical Insertion Loss (dB)	<0.2	<0.15	<0.2	<0.1	<0.1
Return Loss (dB)	>45	>50	>60	/
Insert-pull Test (dB)	<0.2			<0.3	<0.15
Interchangeability (dB)	<0.1			<0.15	<0.1
Anti-tensile Force (N)	>70
Temperature Range (℃)	-40~+80

Company Profile

Shenzhen DYS Fiber Optic Technology is a leading company in developing and manufacturing advanced fiber optic products，mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. DYS win the honorary title of National High-tech enterprise by Shenzhen government in 2014. With years of experiences in the fiber optic industry, our factory is fully equipped over 5000 square meters and more than 30 non dust production lines .About 250 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 15 production lines for standard jumper and 8 PLC Splitter production lines. The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on. All of our optical products are RoHS compliant and DYS also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, DYS fiber optic is looking forward to cooperate with you.

End User

FAQ

Q1. Do you provide OEM ODM service ? Yes, we can print your logo or label on the products or on the box. Q2. How can you guarentee the quality ? Build on our perfect quality management system, all of our products were 100% tested before the shipment. Q3. What is your delivery time ? Generally, sample: 3~5 working days. formal order: 7-10 working days. Q4. What's the method of shipment? We accept all shipment , such as Delievery,ocean transport, land transport , airport transport. Q5. What's the Payment? We accept all payments , such as LC,TT,DP,DA,Paypal,Western Union,Money Gram. Q6. Do you provide sample service? A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.
