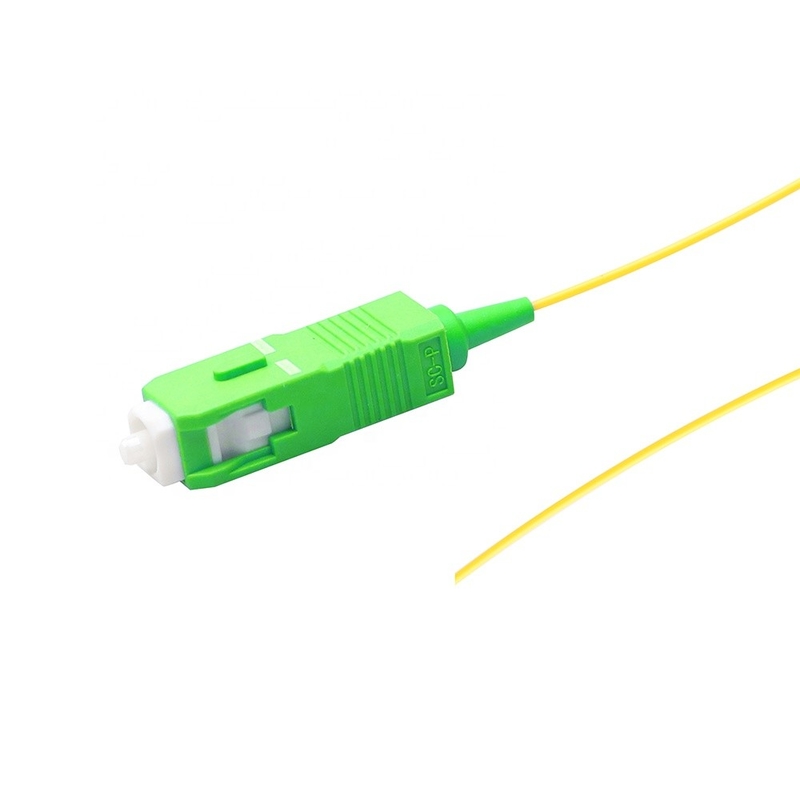

Good quality singlemode SC/APC 0.9mm fiber optic pigtail SC pigtail

Product Details

Place of Origin: Guangdong, China

Brand Name: DYS/OEM

Certification: RoHS, ce

Model Number: SC pigtail

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 100 pieces

Price: $0.10 - $0.50/pieces

Packaging Details: box or as your demand

Supply Ability: 60000 Piece/Pieces per Day

Get Best Price

Product Details

Product Description

Highlight:

Type:	Fiber Pigtails	Use:	FTTH
Model Name:	SC/APC Pigtail	Model:	SM(Single Mode)
Connector Type:	SC	Ferrule Endface:	APC
Cable Outer Diameter:	0.9mm	Cable Lengh:	1/1.5/3/5/10/20m Or Customized
Fiber Type:	G652D//G657A2	Jacket:	PVC/LSZH
Pigtail Color:	Yellow Or Customized	Quality Standard:	Telcordia's GR-326-Core Or IEC
Port:	Shenzhen

Type:	Fiber Pigtails
Use:	FTTH
Model Name:	SC/APC Pigtail
Model:	SM(Single Mode)
Connector Type:	SC
Ferrule Endface:	APC
Cable Outer Diameter:	0.9mm
Cable Lengh:	1/1.5/3/5/10/20m Or Customized
Fiber Type:	G652D//G657A2
Jacket:	PVC/LSZH
Pigtail Color:	Yellow Or Customized
Quality Standard:	Telcordia's GR-326-Core Or IEC
Port:	Shenzhen

Good quality singlemode SC/APC 0.9mm fiber optic pigtail SC pigtail

Product Description

Good quality singlemode SC/APC 0.9mm fiber optic pigtail SC pigtail

Fiber Optic Pigtail is important of optical network.they have same or different connectors which are installed on the end of fiber optic cable. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.

Features

1. SC, LC, FC, MU, ST, MT-RJ, E2000 connector available; 2. Superior qualified standard PC, APC, UPC, SPC polishing; 3. φ0.9mm, φ2.0mm, φ3.0mm cable optional; 4. Single mode (9125) or multi mode (50/125 or 62.5/125) fiber available; 5. Available in fiber bunch, ribbon fan-out, pigtail available; 6. Simplex and duplex connector available; 7. Low IL and High RL; 8. Good exchange ability and good durability; 9. Customized specifications are welcomed.

Item	SM(Single Mode)					MM(Multimode)
Fiber Cable Type	G652D/G655/G657A1/G657A2					OM1	OM2/OM3/OM4
Fiber Diameter (um)	9/125					62.5/125	50/125
Cable OD (mm)	0.9/1.6/1.8/2.0/2.4/3.0
Endface Type	PC	UPC	APC	UPC	UPC
Typical Insertion Loss (dB)	<0.2	<0.15	<0.2	<0.1	<0.1
Return Loss (dB)	>45	>50	>60	/
Insert-pull Test (dB)	<0.2			<0.3	<0.15
Interchangeability (dB)	<0.1			<0.15	<0.1
Anti-tensile Force (N)	>70
Temperature Range (℃)	-40~+80
