1x2 Fiber optic splitting ratio :90/10 FBT splitter/coupler

Product Details

Place of Origin: Guangdong, China

Brand Name: DYS

Certification: ISO9001:2015

Model Number: 1x2 FBT splitter

Document: Product Brochure PDF

Payment & Shipping Terms

Price: $1.50 - $5.90/pieces

Packaging Details: Independent packing

Supply Ability: 20000 Piece/Pieces per Day

Get Best Price

Product Details

Product Description

Type:	PLC Splitter, Steel Tube	Use:	FTTX, FTTH
Warranty Time:	5	Network:	Fiber Optic
Name:	1x2 FBT Splitter	Cable Type:	0.9 Mm
Fiber Type:	G652D/G657A1	Color:	White Or Customized
Material:	LSZH, PVC	Connector:	SC, LC,FC,ST,MTRJ,MPO,MTP,E2000
Window No:	Triple Window	Port:	Shenzhen

Type:	PLC Splitter, Steel Tube
Use:	FTTX, FTTH
Warranty Time:	5
Network:	Fiber Optic
Name:	1x2 FBT Splitter
Cable Type:	0.9 Mm
Fiber Type:	G652D/G657A1
Color:	White Or Customized
Material:	LSZH, PVC
Connector:	SC, LC,FC,ST,MTRJ,MPO,MTP,E2000
Window No:	Triple Window
Port:	Shenzhen

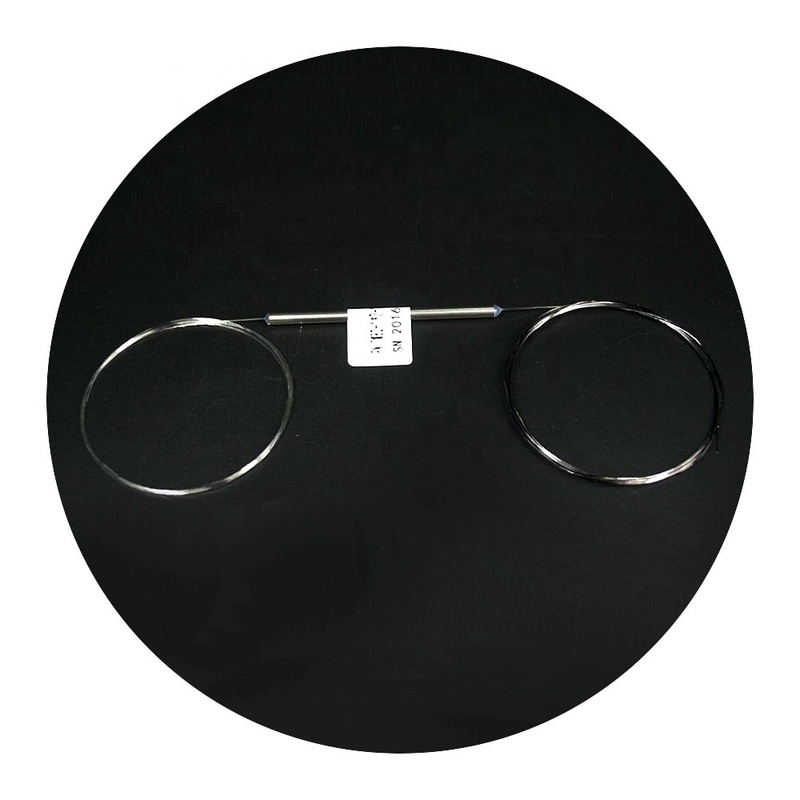

1x2 Fiber optic splitting ratio :90/10 FBT splitter/coupler

Product Description

1x2 Fiber optic splitting ratio :90/10 FBT splitter/coupler

1.Fiber Optic FBT splitter is a type of optical power management device that is fabricated using Fused Biconical Tape technology. 2. It features small size, high reliability, cheap cost and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. 3.It provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE 4. It offers both tree and star type inline couplers/splitters with Rack mount box. 5. They provide a reliable solution to split/combine signals. The splitting ratio ranges from 1x2 to 1x32 ports for tree couplers, and from 2x2 up to 2x32 for star couplers. Available in single, dual, and tripple wavelength windows(1310/1490/1550nm).

Applications

1. FTTX Systems
2. PON Networks
3. CATV
4. Optical Signal Distribution

Features

1. Low Insertion loss and PDL
2. Compact Design
3. Good channel-to-channel uniformity
4. Wide Operating Wavelength: From 1260nm to 1650nm
5. High Reliability and Stability

Parameter	Specification
Channel Number	1×2 or 2×2
Operating Wavelength (nm)	1310,1550,1310/1550,1310/1550/1490
Operating Bandwidth (nm)	±40
Coupling Ratio	Coupling Ratio Insertion Loss(dB)
	P Grade	A Grade
50/50	≤3.3	≤3.5
40/60	≤4.5/2.6	≤4.7/2.8
30/70	≤5.7/1.9	≤5.9/2.1
20/80	≤7.6/1.3	≤7.75/1.38
10/90	≤10.85/0.68	≤11.2/0.75
5/95	≤14.4/0.45	≤15.5 /0.48
2/98	≤18.5/0.6	≤19.8/0.38
1/99	≤21.8/0.28	≤22.8/0.35
PDL (dB)	≤0.15	≤0.2
Directivity(dB)	≥50
Return Loss(dB)	≥55

Parameter

Specification

Operating Wavelength

Single Window1 Dual,Three Window2

(1×N)

N=3

N=4

N=5

N=8

N=16

N=24

N=32

N=64

Fiber Type

Corning SMF-28e

IL(MAX)

5.41/5.62

7.01/7.22

7.81/8.02

10.01/10.42

13.51/13.92

15.01/15.42

17.31/17.52

21.01/21.52

Uniformity

0.51/0.62

0.61/0.82

0.81/1.02

1.11/1.32

1.21/1.52

1.31/1.52

2.11/2.52

Return Loss

≥55

Directivity

≥55

PDL

<0.20

<0.30

<0.40

<0.50

Company Profile

Shenzhen DYS Fiber Optic Technology is a leading company in developing and manufacturing advanced fiber optic products，mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. DYS win the honorary title of National High-tech enterprise by Shenzhen government in 2014. With years of experiences in the fiber optic industry, our factory is fully equipped over 5000 square meters and more than 30 non dust production lines .About 250 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 15 production lines for standard jumper and 8 PLC Splitter production lines. The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on. All of our optical products are RoHS compliant and DYS also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, DYS fiber optic is looking forward to cooperate with you.

End User

FAQ

Q1. Do you provide OEM ODM service ? Yes, we can print your logo or label on the products or on the box. Q2. How can you guarentee the quality ? Build on our perfect quality management system, all of our products were 100% tested before the shipment. Q3. What is your delivery time ? Generally, sample: 3~5 working days. formal order: 7-10 working days. Q4. What's the method of shipment? We accept all shipment , such as Delievery,ocean transport, land transport , airport transport. Q5. What's the Payment? We accept all payments , such as LC,TT,DP,DA,Paypal,Western Union,Money Gram. Q6. Do you provide sample service? A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.
