Fiber Optic Patch Lead LC Uniboot with Push Pull Tab/Switch Polarity

Product Details

Place of Origin: Guangdong, China

Brand Name: DYS/OEM

Model Number: LC Uniboot, LC Uniboot patch cord

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10 pieces

Price: $0.90 - $20.00/pieces

Packaging Details: Individual bag or according to customer's request

Supply Ability: 20000 Piece/Pieces per Day

Get Best Price

Product Details

Product Description

Highlight:

Type:	Fiber Optic Patch Cord	Use:	Ftth
Warranty Time:	5	Network:	Fiber Optic
Product Name:	Lc Uniboot Connector	Connector Type:	LC Uniboot Push-Pull(Switch Polarity)
Fiber Counts:	Simplex, Duplex	Jacket Material:	LSZH,PVC,OFRN,ORNP Can Be Chose
QC:	100% 3D Interferometer Test Pass Before Delivery	Return Loss:	>50db
Cable Diameter:	1.2mm,1.6mm,2.0mm,3.0mm	Insertion Loss:	<0.2dB
Length:	Customized	Port:	Shenzhen

Type:	Fiber Optic Patch Cord
Use:	Ftth
Warranty Time:	5
Network:	Fiber Optic
Product Name:	Lc Uniboot Connector
Connector Type:	LC Uniboot Push-Pull(Switch Polarity)
Fiber Counts:	Simplex, Duplex
Jacket Material:	LSZH,PVC,OFRN,ORNP Can Be Chose
QC:	100% 3D Interferometer Test Pass Before Delivery
Return Loss:	>50db
Cable Diameter:	1.2mm,1.6mm,2.0mm,3.0mm
Insertion Loss:	<0.2dB
Length:	Customized
Port:	Shenzhen

Fiber Optic Patch Lead LC Uniboot with Push Pull Tab/Switch Polarity

Product Description

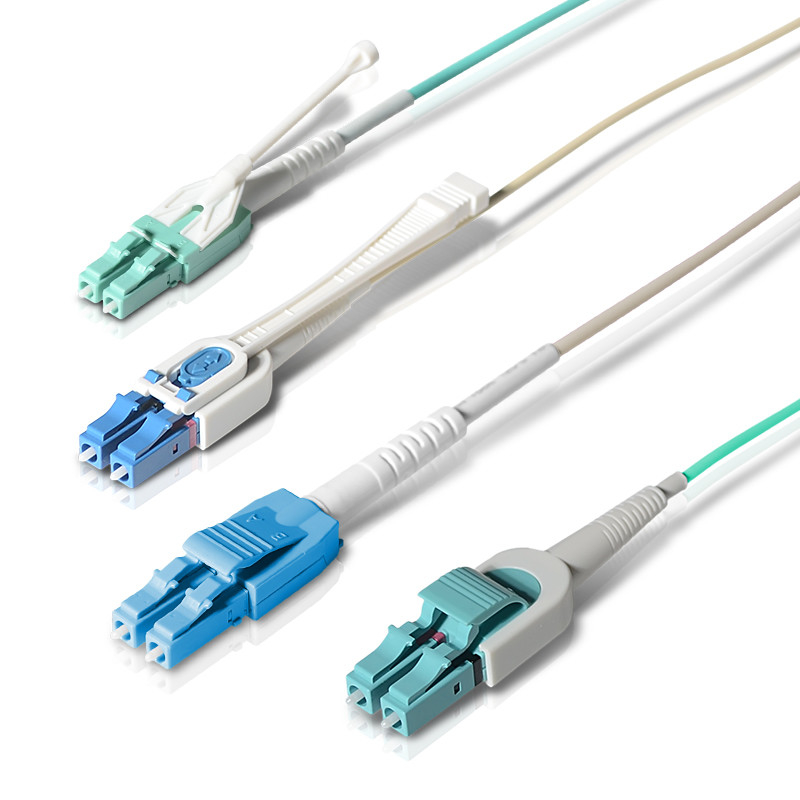

Fiber Optic Patch Lead LC Uniboot with Push Pull Tab/Switch Polarity

Uniboot switch polarity / LC Uniboot patch cord

The duplex LC connector for 2.0mm round cable, which allows the polarity to be switched from A-B to A-A without any tools.

APPLICATIONS

Data Centers
Local Area Networks
High-Density Applications
Interconnects
Cross-connects

FEATURES

Uniboot with a Single Housing
Unique Push-Pull Design and Function
Easy to Assemble and Use
Low Insertion Loss and Back Reflection
High Repeatability and Reliability
Telcordia GR-326 Qualified

LC Uniboot (Switch Polarity)

LC Uniboot Push-Pull(Switch Polarity)

LC Uniboot

LC Uniboot(Push-Pull)

LC (Push/on)

90 Degree Bent LC Uniboot

Mode	Single mode			Multimode
Polish	UPC	APC	PC
Insertion Loss	≤0.30dB	≤0.20dB	≤0.20dB
Return Loss	≥50dB	≥60dB	≥30dB
Test Wavelength	1310/1550nm			850/1310nm
Durability(500 Matings)	≤0.2dB
Operating Temperature	-40℃~+60℃
Storage Temperature	-45℃~+85℃
Fire Resistant	IEC 60794-2-30
Standards-Compliant	ROHS,IEC and GR-326

Fiber type	Single mode:	(1)9/125-G652D	(2)9/125-G655	(3)9/125-G657A,G657A2	(4)9/125-G657B3
Fiber type		Multimode:	(5)50/125-OM2	(6)62.5/125-OM1	(7)50/125-OM3	(8)50/125-OM4	(9)50/125-OM5
Fiber Brand	YOFC, Corning, Sumitomo, Fujikura
Connector	SC/PC, SC/APC, LC/PC, LC/APC, FC/PC, FC/APC, ST/PC, E2000/PC, E2000/APC, MU/PC, MTRJ/Female, MTRJ/Male, MPO/MTP, DIN/PC, SMA/PC, D4/PC
Cord type	Simplex ,Duplex
Cable diameter	0.9mm ,1.2mm, 1.6mm, 1.8mm, 2.0mm, 2.8mm, 3.0mmm, 4.1mm
Cable jacket	PVC, OFNR, LSZH, OFNP
length(M)	0.5m,1m,2m,5m,10m,25m,50m,100m...Customized

Company Profile

Shenzhen DYS Fiber Optic Technology is a leading company in developing and manufacturing advanced fiber optic products，mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. DYS win the honorary title of National High-tech enterprise by Shenzhen government in 2014. With years of experiences in the fiber optic industry, our factory is fully equipped over 5000 square meters and more than 30 non dust production lines .About 250 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 15 production lines for standard jumper and 8 PLC Splitter production lines. The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on. All of our optical products are RoHS compliant and DYS also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, DYS fiber optic is looking forward to cooperate with you.

End User

FAQ

Q1. Do you provide OEM ODM service ? Yes, we can print your logo or label on the products or on the box. Q2. How can you guarentee the quality ? Build on our perfect quality management system, all of our products were 100% tested before the shipment. Q3. What is your delivery time ? Generally, sample: 3~5 working days. formal order: 7-10 working days. Q4. What's the method of shipment? We accept all shipment , such as Delievery,ocean transport, land transport , airport transport. Q5. What's the Payment? We accept all payments , such as LC,TT,DP,DA,Paypal,Western Union,Money Gram. Q6. Do you provide sample service? A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.
