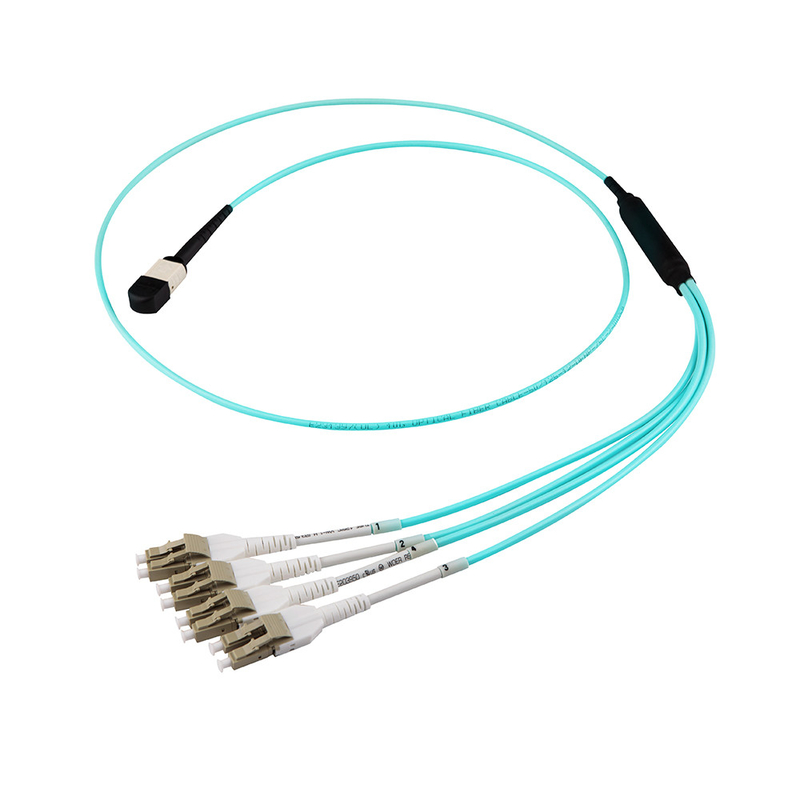

Fiber Optic MTP/MPO Harness Cable MPO Duplex Uniboot LC Fanout/Breakout Cable

Product Details

Place of Origin: Guangdong, China

Brand Name: DYS

Model Number: MPO

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 5 pieces

Price: $12.50 - $20.00/pieces

Packaging Details: Antistatic bag or ascustomers' requirements.

Supply Ability: 2000 Piece/Pieces per Day

Get Best Price

Product Details

Product Description

Highlight:

Type:	Fiber Optic Patch Cord	Use:	Data Center,FTTH,FTTA,FTTX,CATV,CCTV,Base Station
Warranty Time:	2	Network:	Wired LAN, ONVIF, 4g, 3G
Product Name:	MPO/MTP Fiber Optic Patch Cord	Fiber Core:	8 Core ,12core , 24core,48core
Connector:	MTP,MPO , MTP (Elite),MPO (Elite)	Insert Loss:	≤0.35dB (SM), ≤0.30 DB (MM)
Return Loss:	≥60dB (SM), ≥30 DB(MM)	Jacket Colors:	Yellow, Aqua , Erika Violet,Purple
Jacket:	Riser (OFNR), Plenum (OFNP), LSZH	3D Testing:	100%
Length:	1M ,3M, 5M Or Customized	Patch Cord Type:	OM3 40G Fiber Optic Trunk Cable Reversible MTP/MPO Patch Cord
Port:	Shenzhen

Type:	Fiber Optic Patch Cord
Use:	Data Center,FTTH,FTTA,FTTX,CATV,CCTV,Base Station
Warranty Time:	2
Network:	Wired LAN, ONVIF, 4g, 3G
Product Name:	MPO/MTP Fiber Optic Patch Cord
Fiber Core:	8 Core ,12core , 24core,48core
Connector:	MTP,MPO , MTP (Elite),MPO (Elite)
Insert Loss:	≤0.35dB (SM), ≤0.30 DB (MM)
Return Loss:	≥60dB (SM), ≥30 DB(MM)
Jacket Colors:	Yellow, Aqua , Erika Violet,Purple
Jacket:	Riser (OFNR), Plenum (OFNP), LSZH
3D Testing:	100%
Length:	1M ,3M, 5M Or Customized
Patch Cord Type:	OM3 40G Fiber Optic Trunk Cable Reversible MTP/MPO Patch Cord
Port:	Shenzhen

Fiber Optic MTP/MPO Harness Cable MPO Duplex Uniboot LC Fanout/Breakout Cable

Product Description

Fiber Optic MTP/MPO Harness Cable MPO Duplex Uniboot LC Fanout/Breakout Cable

MPO Breakout cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.

Advantage:

Imported production and test equipments:EXFO IL&RL Tester/ Domaille Grinding Machine/ SENKO 3D Interferometer
Pretty high return loss:≥45dB
5-year Experience R&D Team
Customized Production and Service
40G/100G Data Center Solution

Type	Single Mode			Single Mode			Multi Mode
		(APC Polish)			(UPC Polish)			(PC Polish)
Fiber Count	8,12,24 etc.			8,12,24 etc.			8,12,24 etc.
Fiber Type	G652D,G657A1 etc.			G652D,G657A1 etc.			OM1,OM2,OM3 etc.
Maximum Insertion Loss	Elite	Standard	Elite	Standard	Elite	Standard
			Low Loss				Low Loss		Low Loss
		≤0.35 dB	≤0.75dB	≤0.35 dB	≤0.75dB	≤0.35 dB	≤0.60dB
Return Loss	≥60 dB			≥60 dB			NA
Durability	≥500 times			≥500 times			≥500 times
Operating Temperature	-40℃ ~ +80℃			-40℃ ~ +80℃			-40℃ ~ +80℃
Test Wavelength	1310nm			1310nm			1310nm

Company Profile

Shenzhen DYS Fiber Optic Technology is a leading company in developing and manufacturing advanced fiber optic products，mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. DYS win the honorary title of National High-tech enterprise by Shenzhen government in 2014. With years of experiences in the fiber optic industry, our factory is fully equipped over 5000 square meters and more than 30 non dust production lines .About 250 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 15 production lines for standard jumper and 8 PLC Splitter production lines. The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on. All of our optical products are RoHS compliant and DYS also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, DYS fiber optic is looking forward to cooperate with you.

End User

FAQ

Q1. Do you provide OEM ODM service ? Yes, we can print your logo or label on the products or on the box. Q2. How can you guarentee the quality ? Build on our perfect quality management system, all of our products were 100% tested before the shipment. Q3. What is your delivery time ? Generally, sample: 3~5 working days. formal order: 7-10 working days. Q4. What's the method of shipment? We accept all shipment , such as Delievery,ocean transport, land transport , airport transport. Q5. What's the Payment? We accept all payments , such as LC,TT,DP,DA,Paypal,Western Union,Money Gram. Q6. Do you provide sample service? A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.
