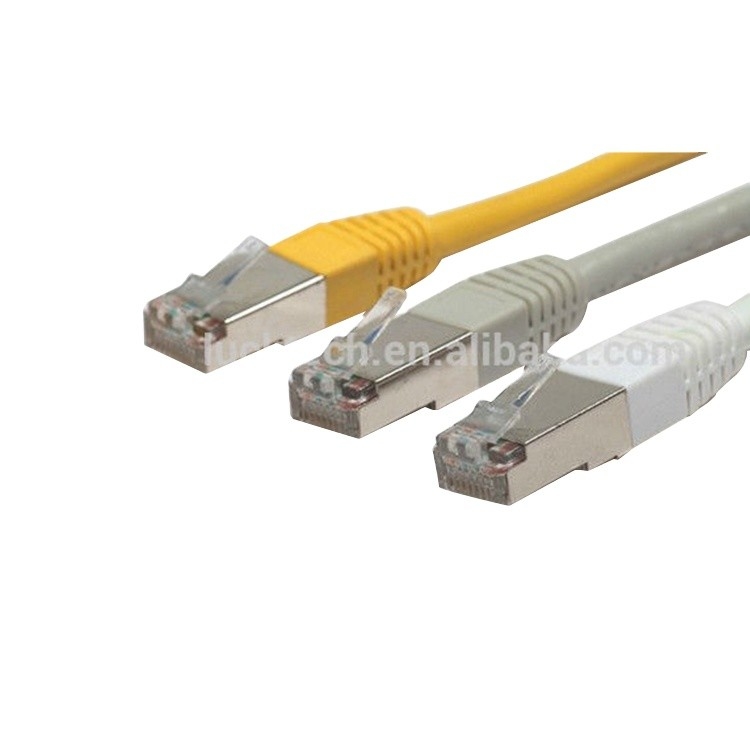

Cat.6 FTP/STP Shielded 24AWG Network Patch cord

Product Details

Place of Origin: Zhejiang, China

Brand Name: OEM

Model Number: lan cable

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1000 pieces

Price: $0.50 - $5.00/pieces

Packaging Details: 1PC/POLYBAG

Supply Ability: 100000 Piece/Pieces per Month

Get Best Price

Product Details

Product Description

Type:	CAT 6, Cat 6	Number Of Conductors:	8
Product Name:	Cat.6 Patch Cord	Port:	NINGBO

Type:	CAT 6, Cat 6
Number Of Conductors:	8
Product Name:	Cat.6 Patch Cord
Port:	NINGBO

Cat.6 FTP/STP Shielded 24AWG Network Patch cord

Product Description

Cat.6 FTP/STP Shielded 24AWG Network Patch cord

Cat.6 FTP/STP Shielded 24AWG Network Patch cord

Industrial Standards:YD/T1019-2001(America) ANSI/TIA/EIA-568-B,(Internation) ISO/IEC 11801/71156.

Conductor: 7 copper wires Ø0.20 mm (0.008"), 23 AWG

Insulation: High-density Polythene(HDPE)

Jacket:Polyvinylchloride(PVC) ,Polyethylene(PE) or Low Smoke Zero Halogen(LSZH)

Enhance Connector: Two-Row RJ45 8P8C Gold Plating 3 u"

Color code ref. To TIA 568ATIA568BTIA568A-T568B110-RJ45110-110

Ratted Temperature: 75.

Cat5, Cat5e, Cat6 and Cat7 Patch Cord Performance Specification Chart
Parameter	Cat5 Patch Cables and Class D with additional requirements TSB95 and FDAM 2	Cat5e Patch Cables ('568-A-5)	Cat6 Patch Cables Class E (Performance at 250 MHz shown in parentheses)	Proposed Cat7 Patch Cables Class F (Performance at 600 MHz shown in parentheses)
Specified frequency range	1-100 MHz	1-100 MHz	1-250 MHz	1-600 MHz
Attenuation	24 dB	24 dB	21.7 dB (36 dB)	20.8 dB (54.1 dB)
NEXT	27.1 dB	30.1 dB	39.9 dB (33.1 dB)	62.1 dB (51 dB)
Power-sum NEXT	N/A*	27.1 dB	37.1 dB (30.2 dB)	59.1 dB (48 dB)
ACR	3.1 dB	6.1 dB	18.2 dB (-2.9 dB)	41.3 dB (-3.1 dB)**
Power-sum ACR	N/A	3.1 dB	15.4 dB (-5.8 dB)	38.3 dB (-6.1 dB)**
ELFEXT	17 dB (new requirement)	17.4 dB	23.2 dB (15.3 dB)	ffs***
Power-sum ELFEXT	14.4 dB (new requirement)	14.4 dB	20.2 dB (12.3 dB)	ffs***
Return loss	8 dB* (new requirement)	10 dB	12 dB (8 dB)	14.1 dB (8.7 dB)
Propagation delay	548 nsec	548 nsec	548 nsec (546 nsec)	504 nsec (501 nsec)
Delay skew	50 nsec	50 nsec	50 nsec	20 nsec
