90 degree angle boot SC LC fiber optic patch cord

Product Details

Place of Origin: Guangdong, China

Brand Name: DYS

Certification: RoHS, ce

Model Number: Fiber Patch Cord

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 100 pieces

Price: $0.50 - $2.00/pieces

Packaging Details: 1pcs in individual bag or match your requirement

Supply Ability: 2000000 Piece/Pieces per Quarter

Get Best Price

Product Details

Product Description

Highlight:

Type:	Fiber Optic Patch Cord	Use:	FTTH
Name:	90 Degree Fiber Connector Boot	Product Name:	Fiber Optic Patch Cord
Fiber Type:	G652D,G657A1,G657A2,G655	Color:	Aqua,Yellow,Orange,Purple
Material:	LSZH, PVC, OFNP	Connector Type:	SC,LC
Mode:	SM MM	Cable Diameter:	0.9mm, 2mm Or 3mm
Cable Length:	1m Or Customized	Fiber Connector Boot:	90 Degree,45 Degree
Port:	Shenzhen

Type:	Fiber Optic Patch Cord
Use:	FTTH
Name:	90 Degree Fiber Connector Boot
Product Name:	Fiber Optic Patch Cord
Fiber Type:	G652D,G657A1,G657A2,G655
Color:	Aqua,Yellow,Orange,Purple
Material:	LSZH, PVC, OFNP
Connector Type:	SC,LC
Mode:	SM MM
Cable Diameter:	0.9mm, 2mm Or 3mm
Cable Length:	1m Or Customized
Fiber Connector Boot:	90 Degree,45 Degree
Port:	Shenzhen

90 degree angle boot SC LC fiber optic patch cord

Product Description

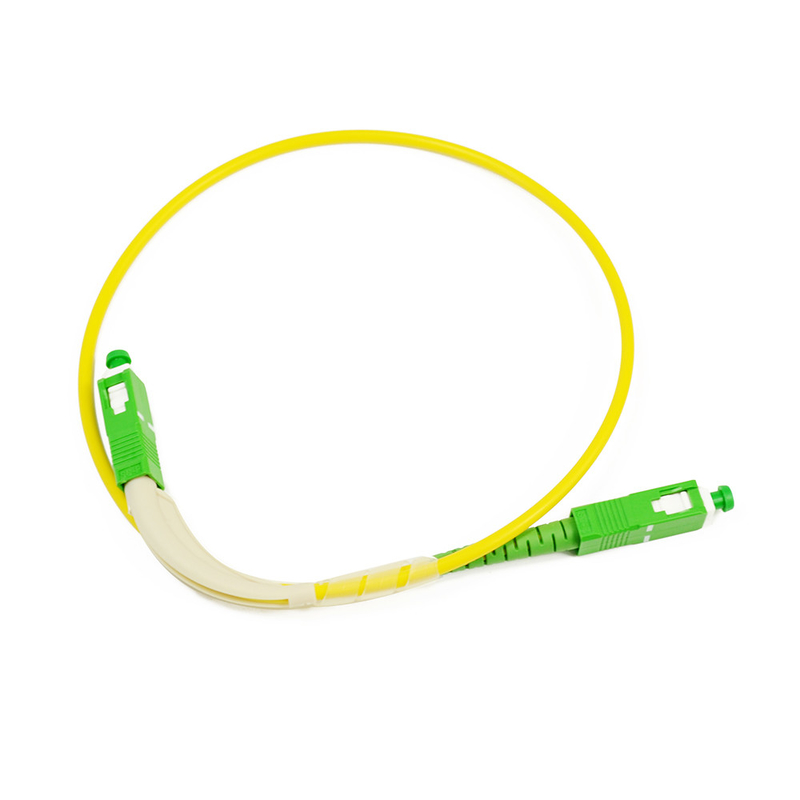

90 degree angle boot SC LC fiber optic patch cord

45/90 degree angled boot fiber optic patch cables have the same performance as regular straight boot patch cables. The only difference is that they have 45/90 degree rubber boot instead of a straight one. All common type of connectors are available with 90 degree boot including SC, ST, LC E2000, FC etc. Unifiber manufactures a whole line of fiber optic patch cords.

APPLICATION

Data Centre Telecommunication networks CATV LAN and WAN FTTX Broadband network

FEATURES

Low insertion loss, high return loss Small, light, high dense connection Standard exact plastic material High credibility and stability Good in repeatability and exchangeability

Parameters	45/90 degree angled boot SC,LC fiber optic patch cord
Fiber Type	SM(G.652/G.657A)	MM(OM1/OM2/OM3/OM4)
Jacket Materials	LSZH/OFNR/PVC
Connector Type	SC/LC/ST/LC/MU/MTRJ/MPO/E2000
Ferrule Materials	Ceramic
Testing Wavelengths	1310±30/1550±30nm	850±30/1300±30nm
Insertion Losss(dB) TIA/EIA-455-107	≤ 0.3dB (PC/UPC/APC)	≤ 0.3dB (PC/UPC)
Return Loss(dB) TIA/EIA-455-107	≥45dB(PC/UPC) ≥55dB(APC)	≥35dB(PC/UPC)
Exchangeability	≤ 0.2dB
Cable Assemblies	Pigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (° C)	-10~ + 70
Storage Temperature (° C)	-40 ~ +85
Package	1unit/bag
*All values specified are with connectors.
