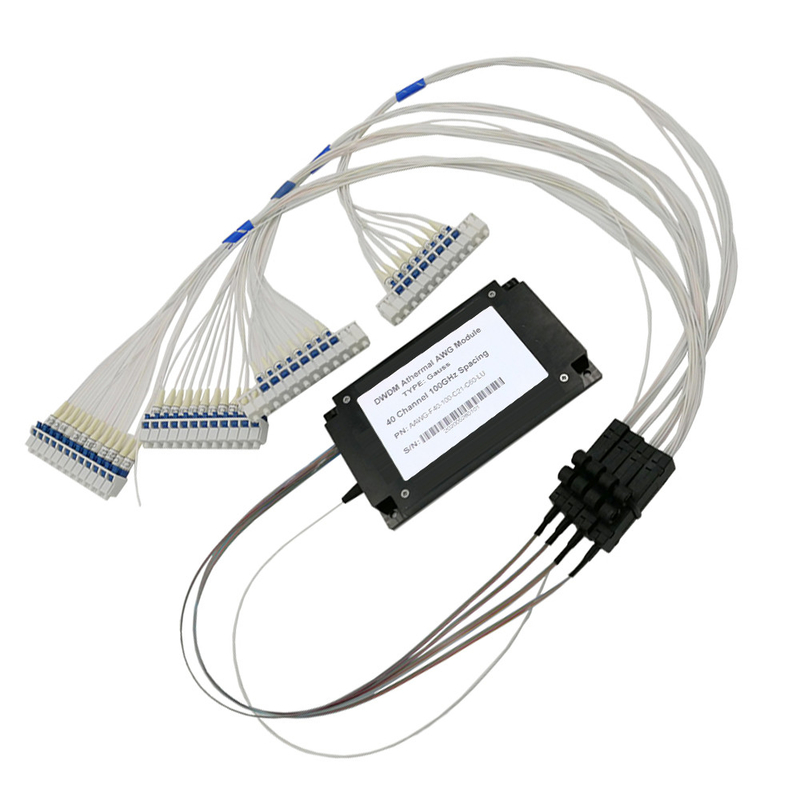

40CH 100GHz Flat-top Athermal AWG DWDM MUX DEMUX Module
40CH 100GHz Flat-top Athermal AWG DWDM MUX DEMUX Module
40CH 100GHz Flat-top Athermal AWG DWDM MUX DEMUX Module
40CH 100GHz Flat-top Athermal AWG DWDM MUX DEMUX Module
40CH 100GHz Flat-top Athermal AWG DWDM MUX DEMUX Module
40CH 100GHz Flat-top Athermal AWG DWDM MUX DEMUX Module
40CH 100GHz Flat-top Athermal AWG DWDM MUX DEMUX Module

40CH 100GHz Flat-top Athermal AWG DWDM MUX DEMUX Module

Product Details

Place of Origin: Guangdong, China

Brand Name: DYS

Model Number: DWDM

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2 pieces

Price: $35.00 - $500.00/pieces

Packaging Details: Plastic box
Carton box
Or as customers requirements

Supply Ability: 10000 Set/Sets per Day

Get Best Price

Product Details

Product Description
Highlight:
Type:
DWDM Module
Use:
FTTX, FTTX
Channel Number:
DWDM MUX/DEMUX-40ch
Channel Spacing:
100Ghz
Number Of Channels:
40
Operating Wavelength:
C-band
Operating Temperature:
-5~75
Input/Output Connector:
FC, SC, LC Optional
Input/Output Length:
0.5m, 1m Or Customized
Pigtail Diameter:
0.9mm
Port:
Shenzhen
Type:
DWDM Module
Use:
FTTX, FTTX
Channel Number:
DWDM MUX/DEMUX-40ch
Channel Spacing:
100Ghz
Number Of Channels:
40
Operating Wavelength:
C-band
Operating Temperature:
-5~75
Input/Output Connector:
FC, SC, LC Optional
Input/Output Length:
0.5m, 1m Or Customized
Pigtail Diameter:
0.9mm
Port:
Shenzhen
40CH 100GHz Flat-top Athermal AWG DWDM MUX DEMUX Module
Product Description
DWDM Mux/Demux Athermal AWG Module 40 Channel AWG
DYS rack-mounted 40-channel DWDM multiplexer (Mux) and Demultiplexer (DeMux) chassis provide excellent solution for infrastructure savings by aggregating 40 different wavelengths onto a single fiber. These 1U products are protocol transparent. All 40 channels are in the C-band with spacing of 100 GHz between channels using high quality AWG Gaussian technology.

APPLICATION

DWDM Metro and Long Haul Networks Fiber savings for Data Centers connectivity

FEATURES

High isolation Low insertion loss Dual power supply Can be management by console and NMS Expoxy-free optical path Low total integrated crosstalk Excellent stability & reliability Excellent wavelength accuracy & stability Athermal design

40CH 100GHz Flat-top Athermal AWG DWDM MUX DEMUX Module
40CH 100GHz Flat-top Athermal AWG DWDM MUX DEMUX Module
40CH 100GHz Flat-top Athermal AWG DWDM MUX DEMUX Module
40CH 100GHz Flat-top Athermal AWG DWDM MUX DEMUX Module
40CH 100GHz Flat-top Athermal AWG DWDM MUX DEMUX Module
Parameter
Value
Number of Channels
40
Channel Spacing
100Ghz
Operating Wavelength
C-band
Passband Frequency
±0.1nm
Wavelength Accuracy
±50pm
Insertion Loss
<6.0dB
Consistency of Insertion Loss
<1.2dB
Insertion Loss Flatness
<0.5dB
0.5dB Passband
>0.2nm
1dB Passband
>0.4nm
3dB Passband
>0.6nm
20dB Passband
<1.2nm
Adjacent Channel Isolation
≥25dB
Non-Adjacent Channel Isolation
≥30dB
Total Crosstalk
22 dB
Return Loss
≥40dB
Polarization Dependent Loss
<0.5ps
Polarization Mode Dispersion
<0.5ps
Maximum Load Optical Power
24dBm
Monitoring Range of Optical Power
-35dBm ~ +23dBm
Connector Form
LC/UPC
Operating Temperature
-10~+65℃
Relative Humidity
95%
Dimensions
19-inch 1U rack (440 x 220 x 44mm)
40CH 100GHz Flat-top Athermal AWG DWDM MUX DEMUX Module
40CH 100GHz Flat-top Athermal AWG DWDM MUX DEMUX Module
40CH 100GHz Flat-top Athermal AWG DWDM MUX DEMUX Module
40CH 100GHz Flat-top Athermal AWG DWDM MUX DEMUX Module
40CH 100GHz Flat-top Athermal AWG DWDM MUX DEMUX Module
