24 Cores MTP Fiber Optic Patch Panel MPO Cassette Module

Product Details

Place of Origin: Guangdong, China

Brand Name: DYS/OEM

Certification: ISO9001, ROHS

Model Number: MTP/MPO cassette

Document: Product Brochure PDF

Payment & Shipping Terms

Price: $25.00/pieces 1-99 pieces

Packaging Details: Individual box or according to customer's request

Supply Ability: 2000 Piece/Pieces per Day

Get Best Price

Product Details

Product Description

Highlight:

Type:	Racks & Enclosure	Use:	FTTX
Warranty Time:	3	Network:	Wireless Lan, 4g, 3G
Product Name:	MPO/MTP Module Cassette	Connector Type:	MPO/LC/SC/FC/ST/MU
Fiber:	8core,12core Or 24core	Material:	Cold-rolled Steel Or Aluminum
Color:	Black Or Silver	Insert Loss:	≤0.5dB (SM), ≤0.30 DB (MM)
Return Loss:	≥65dB (SM), ≥20 DB(MM)	3D Test:	100% For Patch Cord
Fiber Type:	SM/MM/OM3/OM4	Port:	Shenzhen

Type:	Racks & Enclosure
Use:	FTTX
Warranty Time:	3
Network:	Wireless Lan, 4g, 3G
Product Name:	MPO/MTP Module Cassette
Connector Type:	MPO/LC/SC/FC/ST/MU
Fiber:	8core,12core Or 24core
Material:	Cold-rolled Steel Or Aluminum
Color:	Black Or Silver
Insert Loss:	≤0.5dB (SM), ≤0.30 DB (MM)
Return Loss:	≥65dB (SM), ≥20 DB(MM)
3D Test:	100% For Patch Cord
Fiber Type:	SM/MM/OM3/OM4
Port:	Shenzhen

24 Cores MTP Fiber Optic Patch Panel MPO Cassette Module

Product Description

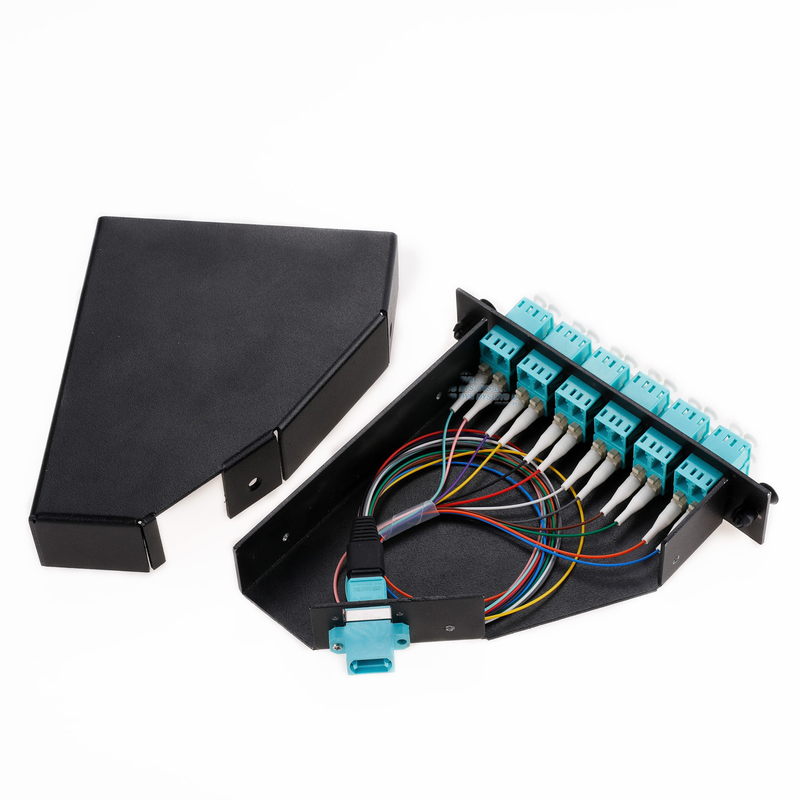

24 Cores MTP Fiber Optic Patch Panel MPO Cassette Module

MPO Cassette Modules provide secure transition between MPO and LC or SC discrete connectors. They are used to interconnect MPO backbones with LC or SC patching. Modular system allows for rapid deployment of high density data centre infrastructure as well as improved troubleshooting and reconfiguration during moves, adds and changes. can be mounted in 1U or 4U 19” multislot chassis. MPO Cassettes contain factory controlled and tested MPO-LC fan-outs to deliver optical performance and reliability. Low loss MPO Elite and LC or SC Premium versions are offered featuring low insertion loss for demanding power budget high speed networks.

Advantage:

1,Versatile panel with extendable double slide rails for smooth sliding
2,1RU suitable 2-4pcs KNC standard adapter plates at different size
3,Silkscreen printing on the front aperture for fiber identification
4,Comprehensive accessory kit for cable entry and fiber management
5,Able to hold MTP (MPO) loaded cassettes
6,Customize design available

Type	Single Mode			Single Mode			Multi Mode
		(APC Polish)			(UPC Polish)			(PC Polish)
Fiber Count	8,12,24 etc.			8,12,24 etc.			8,12,24 etc.
Fiber Type	G652D,G657A1 etc.			G652D,G657A1 etc.			OM1,OM2,OM3 etc.
Maximum Insertion Loss	Elite	Standard	Elite	Standard	Elite	Standard
			Low Loss				Low Loss		Low Loss
		≤0.35 dB	≤0.75dB	≤0.35 dB	≤0.75dB	≤0.35 dB	≤0.60dB
Return Loss	≥60 dB			≥60 dB			NA
Durability	≥500 times			≥500 times			≥500 times
Operating Temperature	-40℃ ~ +80℃			-40℃ ~ +80℃			-40℃ ~ +80℃
Test Wavelength	1310nm			1310nm			1310nm
